Products



  • Textile Printing Rubber Blanket / Belt



  • LENGTH: Any length available as per your order.
    WIDTH: Maximum width (3250 meter) 3.25 meters.
    CONSTRUCTION: According to type of machine. Normally 7, 8 & 9 ply construction is used.
    COMPOSITION: Owing to a special process of combining the different plies of our MANIAR textile printing rubber blankets / belts , and to the selection of special fabric in these plies, our MANIAR textile printing rubber blankets / belts, present such dimensional stability that they will track indefinitely without deviation or deformation.

    FEATURE: Endless blanket / no joint.
    SURFACE: Matt black, absolutely smooth 100% flat, without any variation of level.
    RESISTANCE: Highly resistant to heat, ageing, oxidation, dilute sulphuric acid, dilute hydrochloric acid, aliphatic hydrocarbons, white spirits with low aromatic contents, mixture of acetone and white spirits.





  • PU Printing Blanket

  •

    • We supply one of the best quality of PU Printing Blankets. Our PU printing Blankets guarantee a smooth surface and highest printing accuracy. They are designed to perform at par with International brands like Forbo Printing Blankets, Habasit Printing Blankets, Ammeraal Printing Blanket. Our PU printing Blanket stock is imported from the best suppliers abroad, and the joint / splicing is done in house in our state of the art Punching Machine and Press.

      • Our PU printing Blanket stock is imported from the best suppliers abroad, and the joint / splicing is done in house in our state of the art Punching Machine and Press.

        • We stock PU Printing Blankets of width upto 3300mm in various thicknesses which makes a reliable partner for your emergency needs.

          • We can dispatch a PU printing blanket within 8 hours of receiving order, subject to availability of stock at our Plant.

            • Suitable for Double Servo drive Machines and Rotary Printing Machines

              • Length and width as per customer’s requirement.

                • Widths up to 4000 mm available

                  • Delivery time: 24 hours (subject to stock availability)



    Technical Specification of PU Printing Blanket



    Top Surface

    Matt Black

    Tension Layer

    Polyester

    Aramid

    Thickness

    2.1mm to 2.8 mm

    Hardness

    Top Cover 94 Shore A

    Top Cover 90 Shore A

    No. of Ply

    1 Ply

    2 Ply

    3 Ply

    Elongation @ 1 %

    15 N / MM

    20 N / MM

    45 N / MM

    70 N / MM

    Joint Method

    Finger Splicing / Overlap Splicing









    Silky And Felt (Gadi)

    We also supply High quality silky and felt used in Flat-Bed Printing Machines. Width Available from 66” to 125”



    Dryer Conveyor Belt

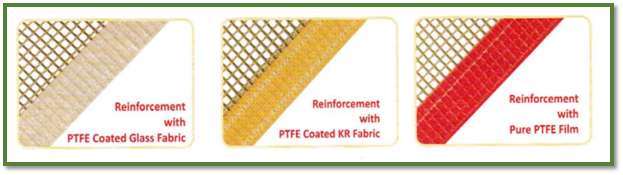

    We also supply PTFE Coated Conveyor belt for Rotary Printing and Flat-bed Printing machine dryer. Different types of Joints and Edge reinforcements available as per customer’s requirement.



    • Width Available: Up to 4200 mm

      • Dimensional Stability: No Shrinkage, almost zero elongation

        • Non-combustible and Non-Stick Surface

          • No heat setting required

            • Very good resistant to oil, grease and chemicals

              • Tensile strength above 400N/cm









    Other Textile Accessories

    We are exporting various textile auxiliaries and spares to various countries around the world.
